Students, degree programmes and departments

Normalization · Part III

Problem

One relation holds the data of a set of students, in non-normalized form:

CodFisc Matr Cogn Nome IDCdS NomeCdS IDDip NomeDip IDSede Indir
RSSMRA… 101 Rossi Mario C1 Fisica D1 Scienze S1 Via Fermi
BLLLCU… 102 Belli Lucia C1 Fisica D1 Scienze S1 Via Fermi
NREPLA… 103 Neri Paolo C2 Chimica D1 Scienze S1 Via Fermi
NREMRA… 103 Neri Maria C3 Ing Inf D2 Ing S1 Via Fermi
BRNMRA… 104 Bruni Maria C4 Inglese D3 Lingue S2 Via Eliot

with the functional dependencies

  • CodFisc → Matr, Cogn, Nome, IDCdS
  • Matr → CodFisc, Cogn, Nome, IDCdS
  • IDCdS → NomeCdS, IDDip
  • IDDip → NomeDip, IDSede
  • IDSede → Indir

Find the keys (there are two), say which dependencies violate BCNF, draw a conceptual schema, and decompose the relation into BCNF.

Method

  • Keys. An attribute set is a key if, following the dependencies, it determines every attribute, and no smaller set does. Attributes that never appear on the right of an arrow must be in every key.
  • BCNF. A relation is in Boyce–Codd normal form if the left side of every non-trivial dependency is a superkey. Each dependency whose left side is not a key is a violation.
  • Decomposition. Each violating dependency \(X \to Y\) becomes its own table \((X, Y)\) with key \(X\); \(X\) stays in the original table as a foreign key.
  • From dependencies to E-R. Every left side that identifies something (a student, a degree programme, a department, an office) is an entity; a dependency between identifiers (IDCdS → IDDip) is a one-to-many relationship.

Solution

1 · Keys. CodFisc and Matr determine each other, and either of them determines the whole chain: CodFisc → IDCdS → IDDip → IDSede → Indir. The two keys are CodFisc and Matr.

2 · BCNF violations.

Dependency Left side is a key? Violates BCNF
CodFisc → Matr, Cogn, Nome, IDCdS yes no
Matr → CodFisc, Cogn, Nome, IDCdS yes no
IDCdS → NomeCdS, IDDip no yes
IDDip → NomeDip, IDSede no yes
IDSede → Indir no yes

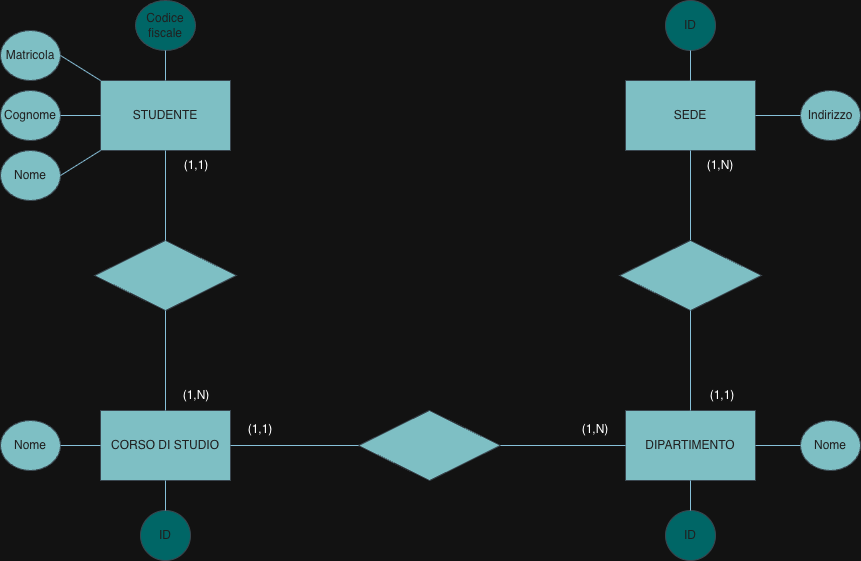

3 · Conceptual schema.

E-R schema of students, degree programmes, departments and offices

4 · BCNF decomposition.

CodFisc Matr Cogn Nome IDCdS
RSSMRA 101 Rossi Mario C1
BLLLCU 102 Belli Lucia C1
IDCdS NomeCdS IDDip
C1 Fisica D1
C2 Chimica D1
IDDip NomeDip IDSede
D1 Scienze S1
D2 Ing S1
IDSede Indir
S1 Via Fermi
S2 Via Eliot

The text accepts "at least part of the data". Every table now has one subject, and each department's name and office are written once instead of once per student.

Review notes

The keys, the violations and the decomposition are correct. Two details:

  • Matricola is the second key, so in the E-R schema it should be marked as an identifier too (an alternative one), not as a plain attribute; in the first table it is a candidate key (UNIQUE).
  • The exam data contradict Matr → CodFisc: matricola 103 appears with two different tax codes (Paolo and Maria Neri). The dependencies are given as definitions, so the solution rightly follows them; it is most likely a typo in the text.

Takeaways

  • Two attributes that determine each other are two equivalent keys.
  • A chain of dependencies (student → programme → department → office) breaks into one table per link, and maps one-to-one onto a chain of entities in E-R.
  • The BCNF test only looks at the left side: is it a key?
