Conceptual design: first schemas¶

Conceptual design · Part II

Problem¶

Seven practice exercises: read a description of an application (in prose, or as a printed document such as a theatre programme) and draw its Entity-Relationship schema. They follow the order in which the notions were introduced: entities and relationships, then generalizations, then identifiers and cardinalities.

Method¶

1. Nouns with their own properties become entities; their properties, attributes.
2. Links between entities become relationships; a property of the link (a date, a price, a position) is an attribute of the relationship.
3. For each relationship, ask for one occurrence of each entity: with how many occurrences of the other can it be linked, at least and at most? That is the cardinality on its side.
4. Identifiers: a code, or an attribute plus the entity it depends on (external identifier: a repair number is unique only within its workshop).
5. Generalizations when some occurrences have extra properties: total if every parent belongs to a child, exclusive if to at most one.

The diagrams are drawn with draw.io: dark ellipses are identifiers, light ones plain attributes; a line through a relationship ending in a dot marks an external identifier; a thick filled arrow is a total generalization, a hollow arrow a partial one (or a subset).

1 · Employees, departments and projects¶

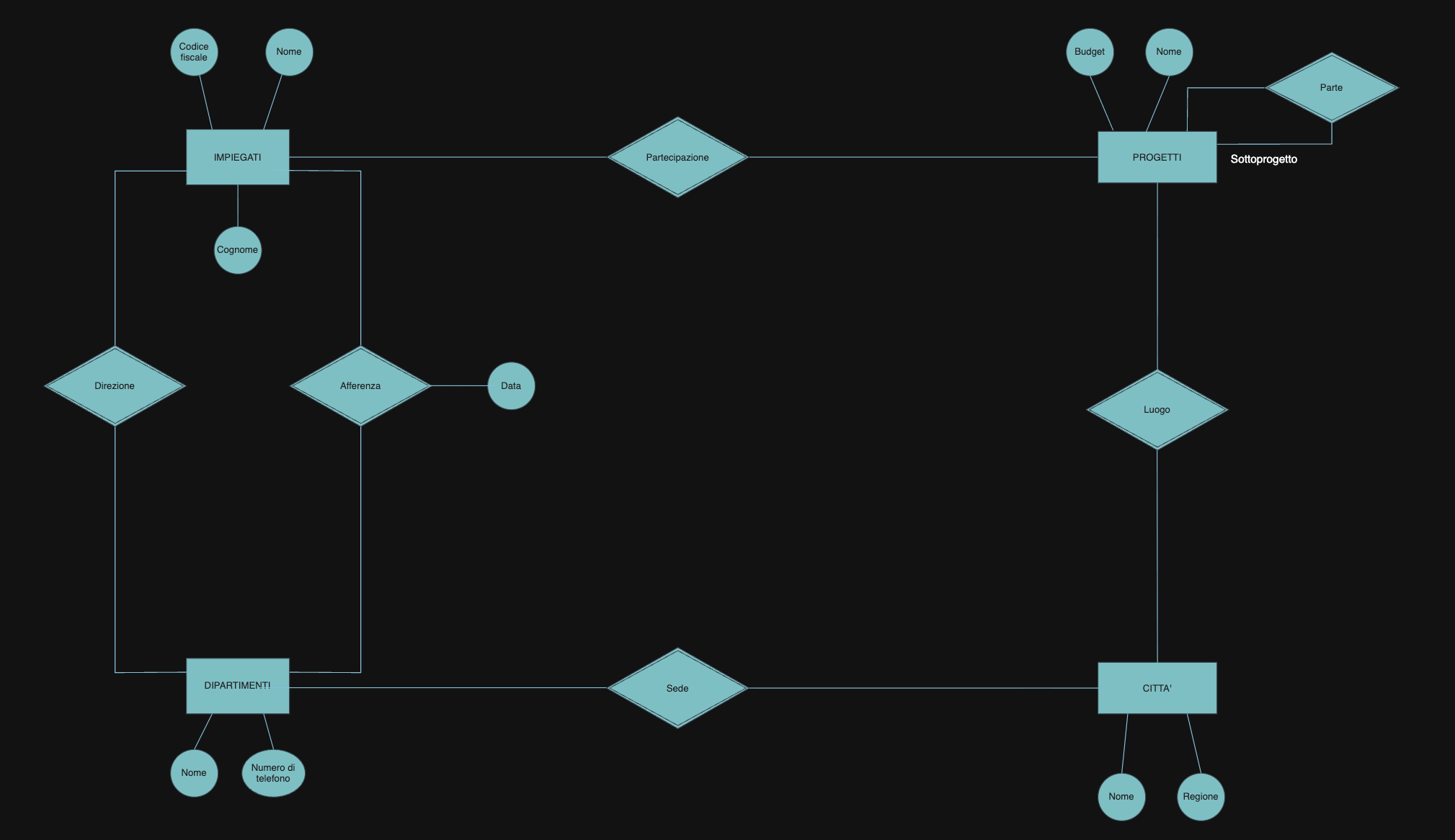

Employees (tax code, name, surname) belong to departments, with the date they joined, and work on projects; projects have a name, a budget and the city where they take place, and can be parts of other projects; departments have a name, a phone number, the employees who direct them and the city of their office; cities have a name and a region.

The structure is right: a recursive relationship Parte with the role Sottoprogetto, and the date on Afferenza, since it describes the link and not the employee. As the first exercise of the series, it has neither cardinalities nor identifiers.

2 · Flights and charter flights¶

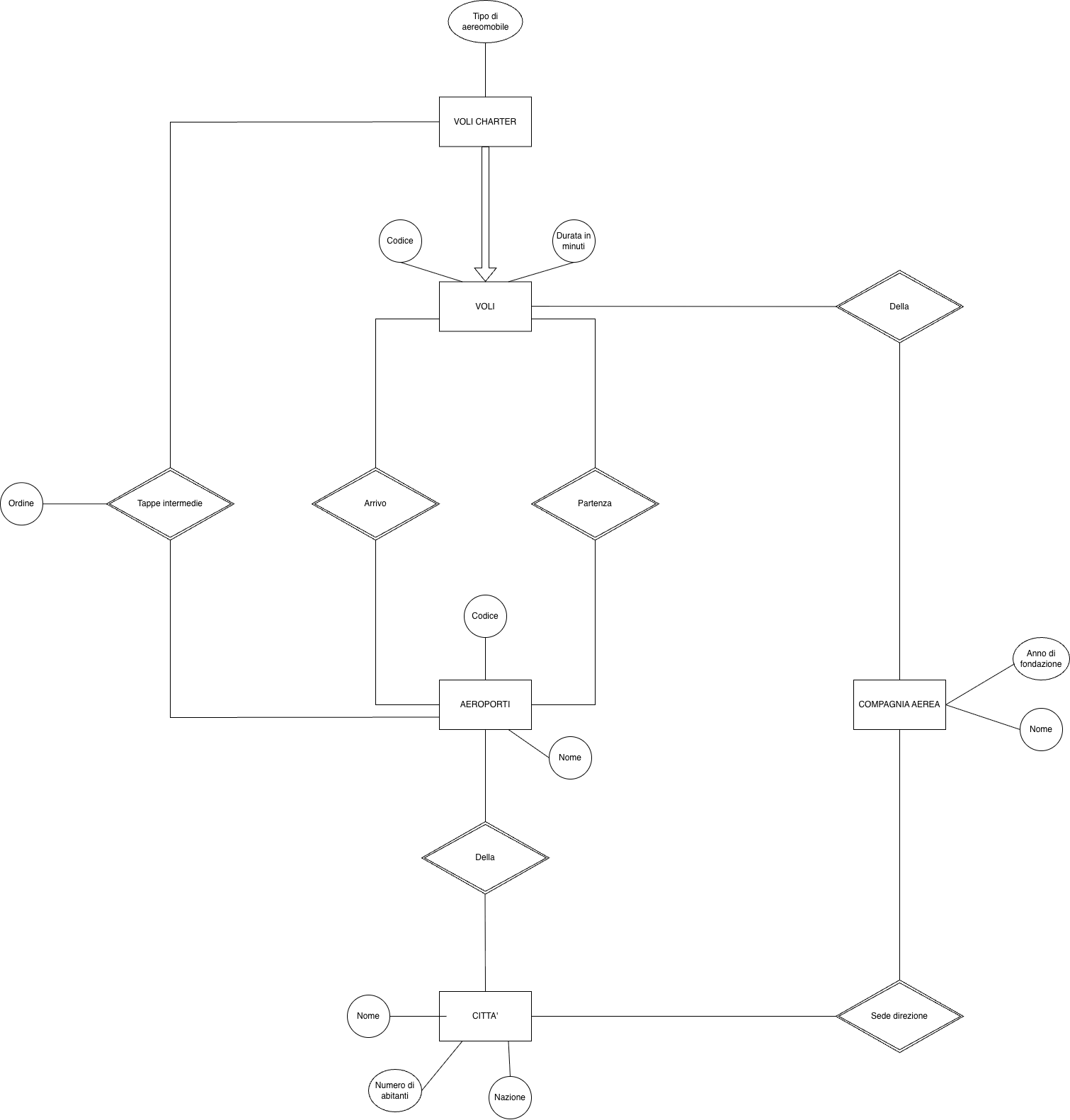

Flights have a code, a length in minutes, an airline, a departure and an arrival airport; airports have a code, a name, a city (name and population) and a nation; airlines have a name, a foundation year and the city of their headquarters. Charter flights are particular flights with intermediate stops at airports, in a given order, and an aircraft type.

Charter flights are a subset of flights (hollow arrow): they inherit everything and add the aircraft type and the stops. The order of the stops is an attribute of Tappe intermedie, because it belongs to the pair (flight, airport). Cardinalities and identifiers are still missing.

3 · Generalizations: persons, employees, students¶

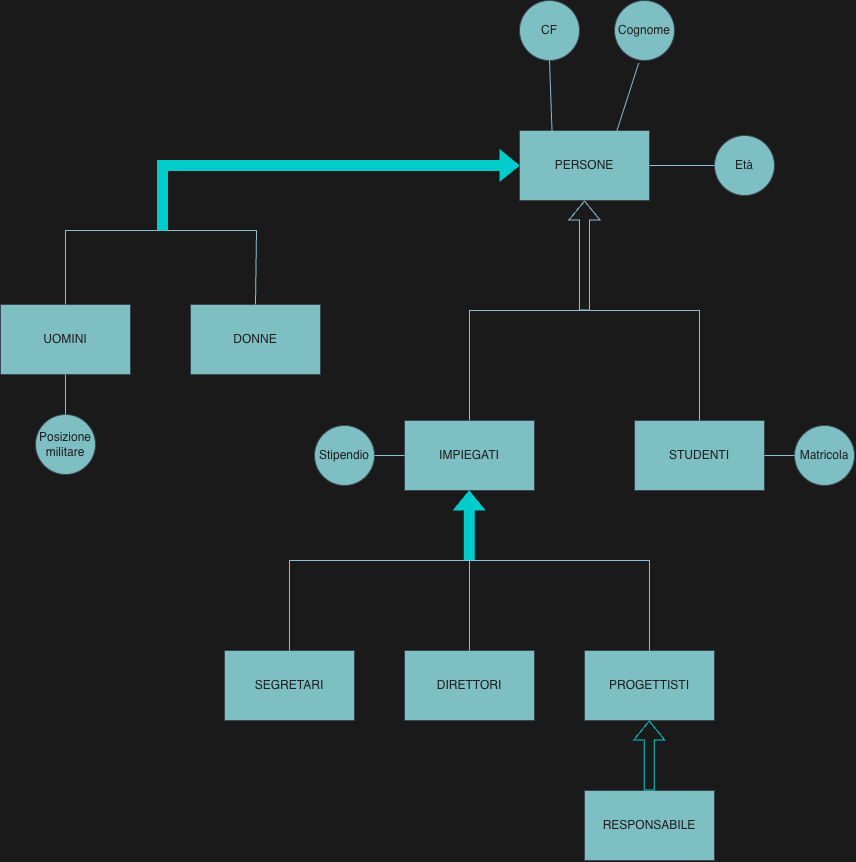

Persons have a tax code, a surname and an age; men also have their military status; employees have a salary and can be secretaries, managers or designers (a designer can also be project leader); students (who cannot be employees) have a student number; some persons are neither.

Each kind of generalization is chosen correctly: men/women is total and exclusive (thick arrow); employees/students is partial (some persons are neither) and exclusive; project leader is a subset of designers.

4 · Car repair workshops¶

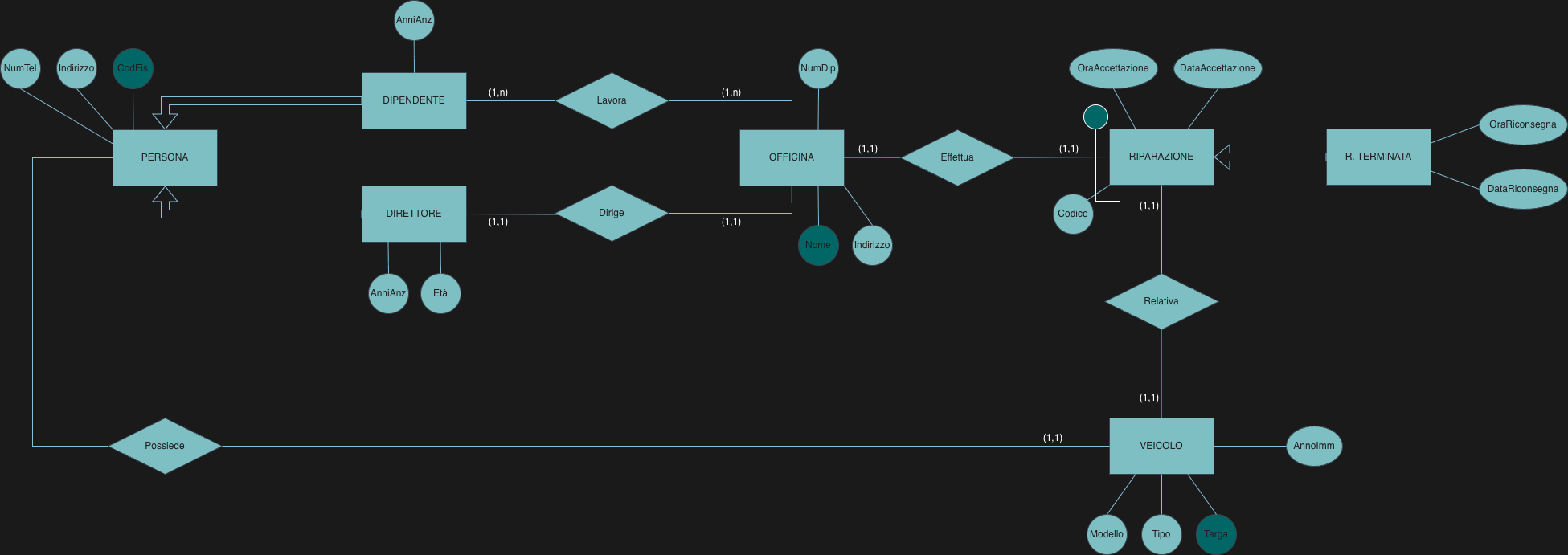

Workshops have a name, an address, a number of employees, employees (with years of service) and one director; each director runs exactly one workshop. Employees and directors have tax code, address, phone numbers and seniority; directors also an age; a director may also be an employee. Each repair is done by one workshop on one vehicle, with a code unique within the workshop, acceptance date and time and, once finished, return date and time. Vehicles have model, type, plate, registration year and one owner (tax code, address, phone numbers).

Good choices: a repair is identified by its code and its workshop; employees and directors are two separate subsets of PERSONA, so the same person can be both; finished repairs are a subset with the return date and time.

5 · Course participants¶

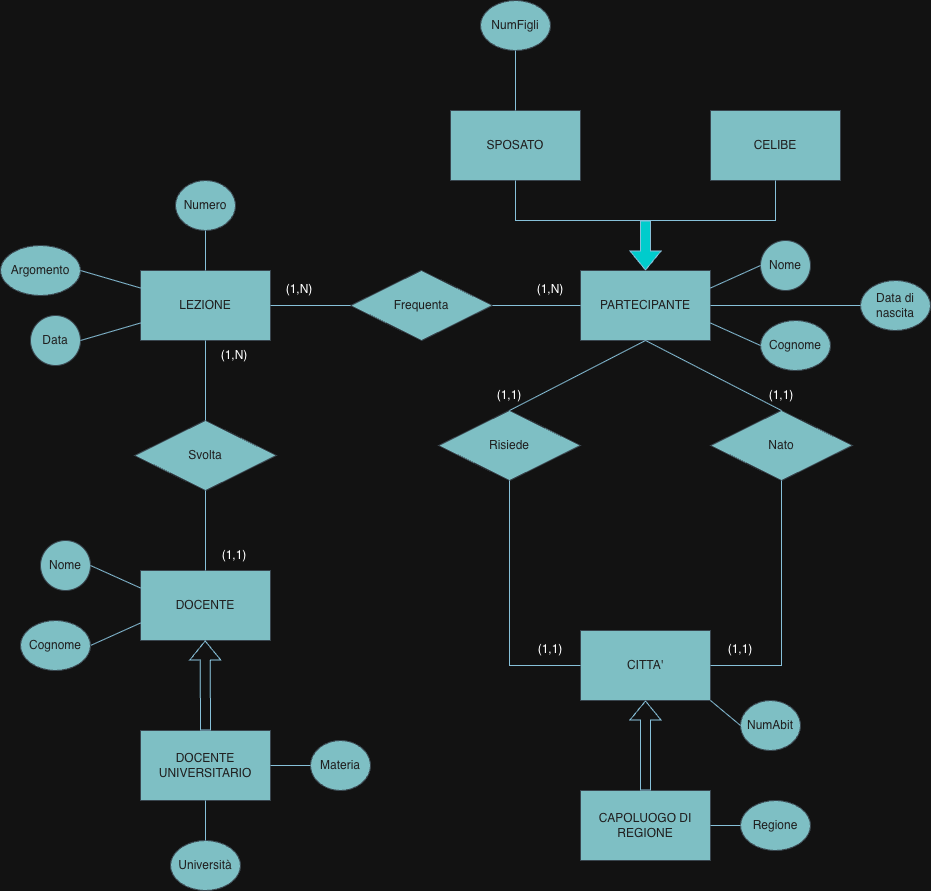

Participants of a course: name, surname, date of birth, whether married and, if so, number of children; the cities where they live and where they were born, with population, and the region for regional capitals; the lessons they attended, each with a progressive number, topic and day, and the lecturers who taught them (name, surname); for lecturers from a university, the university and the subject they teach there.

Three generalizations, all appropriate: married participants with the number of children, regional capitals with the region, university lecturers with university and subject.

6 · Property sales and rentals¶

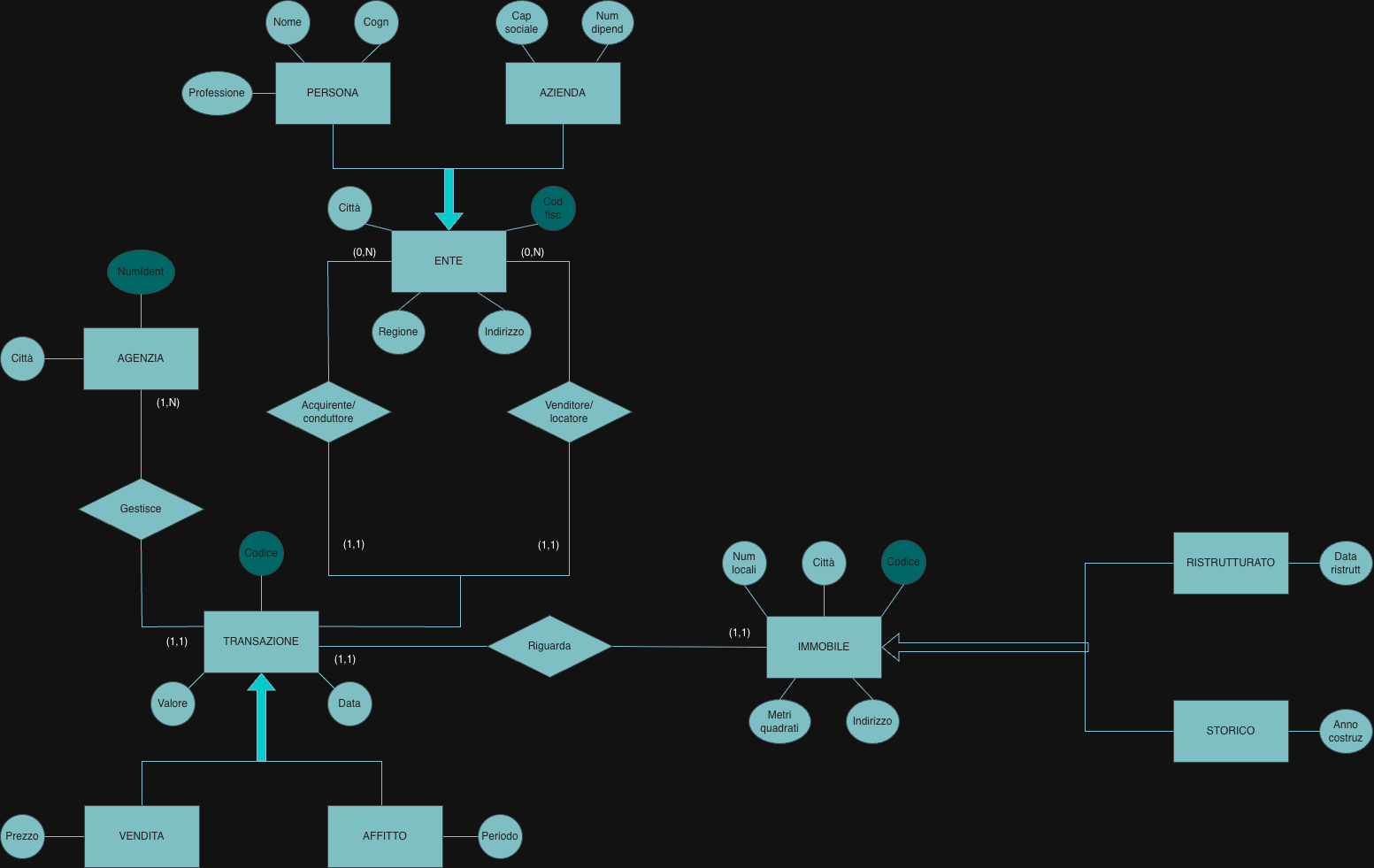

Transactions (code, date, value) of sale and rental, carried out by agencies (number and city), each about one property; properties (code, address, city, square metres, rooms), some of historical interest (construction year), some renovated (date of the last renovation); parties that buy, sell, rent out or rent, with tax code, address, city and region, which are persons (name, surname, profession, city of birth) or companies (share capital, employees); rentals have a period, sales a price.

A well-built schema: three generalizations of the right kind (parties into persons and companies, transactions into sales and rentals, both total; properties into historical and renovated, partial and possibly overlapping), and two relationships between transaction and party for the two roles (buyer or tenant, seller or landlord).

7 · Theatres, from their programme¶

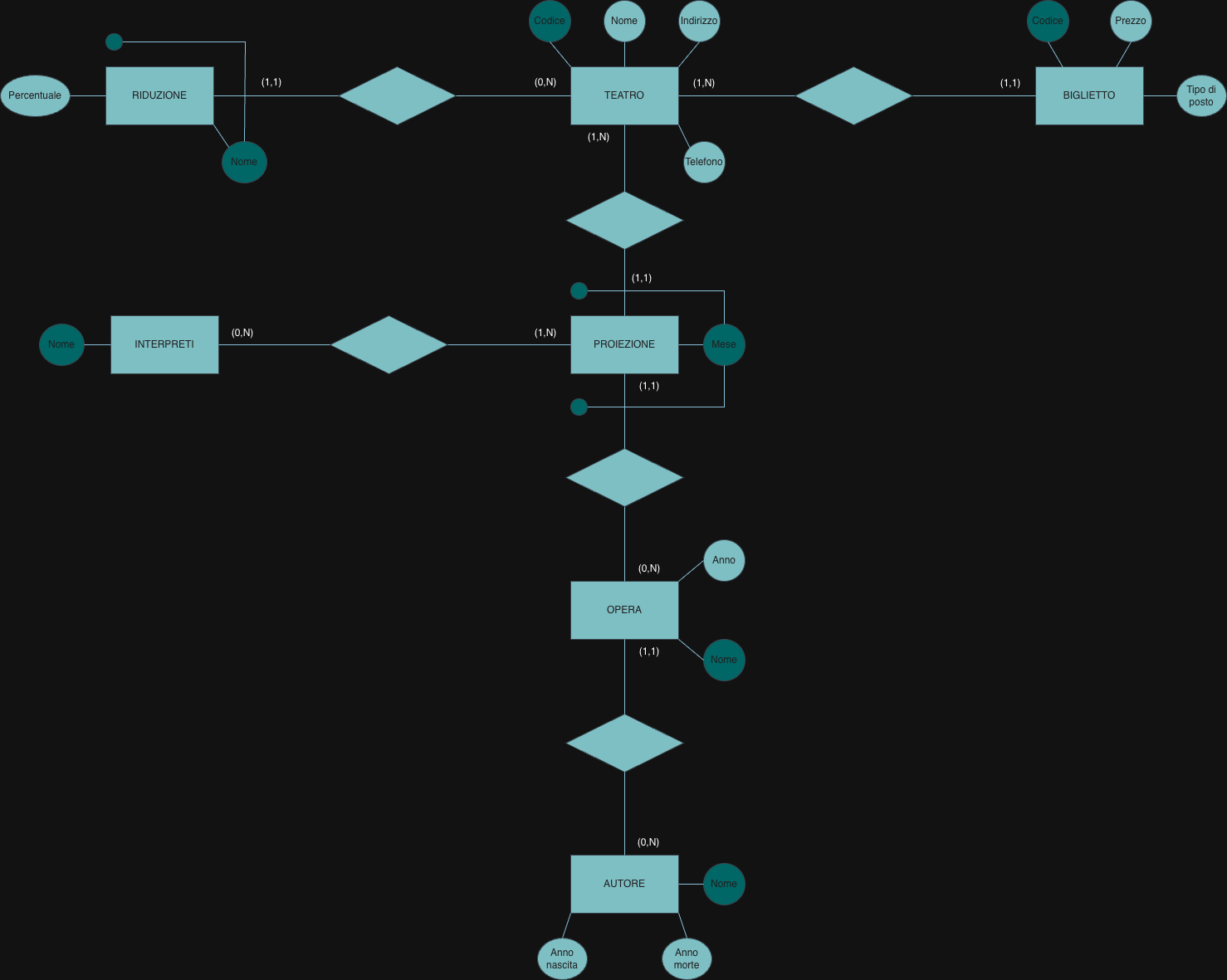

The data come from a printed programme of two theatres: address, phone, ticket prices by seat type, reductions (students 20%…), and for each play the author with years of birth and death, the month and the main performers.

The performance (PROIEZIONE) is identified by theatre, play and month, which allows the same play to return to the same theatre in another month; authors and performers are entities of their own, as they recur across plays and theatres.

Takeaways¶

• Attributes of a link (date of joining, order of a stop, years of service) go on the relationship, not on the entities.
• For each relationship, ask the cardinality question from both sides, with one concrete occurrence in mind: "this workshop, how many repairs?".
• Choose the kind of generalization from the wording: "are" means total, "can be" means partial; "cannot be both" means exclusive.
